WICHTIG ! ! ! Ape Labs Geräte ab 2013 können IMMER kostenfrei mit Softwareupdates aktualisiert werden. Wir produzieren und entwickeln nachhaltig.

Bedienungsanleitung Ape Labs LED Leuchten Stand 11 / 2022

Bedienungsanleitung Ape Labs CONNECT (WAPP) Stand 11 / 2022

Firmware 5.2 Lampen & 3.2.3 CONNECT "Schäufele"

Hinweis: Neue Software-Funktionen für das Ape Labs Ecosystem werden über die Ape Labs Smartphone App kostenfrei veröffentlicht. Den Changelog finden Sie unter dem Bereich „IOS & Android App Updates for CONNECT (WAPP)“.

Backup lamp control without remotecontrol, radio is turned off

  • enter mode: Press and hold powerbutton for 8 seconds (The old way into the bootloader is now used for standalone mode)
  • leave mode: Press and hold powerbutton for 2 seconds (Battery devices will also be turned off)
  • use mode: Short press powerbutton to switch through program presets (only static colors)
1 Candlelight Classic
2 Candlelight Rustic
3 Soft Amber
4 Blush Pink
5 Lilac
6 Seafoam
7 Mint
8 Pastel Blue
9 Turquoise
10 Red
11 Green
12 Blue
13 Amber
14 Amber White
15 Warm White
16 White
17 Cool White
18 Violet
19 Purple
20 Lavender
21 Magenta
22 Neon Pink
23 Coral
24 Yellow
25 Orange
26 Peach
27 Lime
28 Slate Blue
29 Moonlight Blue
30 Rainbow (Automatic Program)
31 CONNECT (Virtual Program)

DMX Mode 7 Channel
Channel Function Value
1 Red 0 – 255
2 Green 0 – 255
3 Blue 0 – 255
4 White 0 – 255
5 Dimmer 0 – 255
6 Speed / Strobe 0 = Off   |   1 – 255 Slow to fast (See detailed list below)
7 Musik Mode 0 – 124 Off   |   125 – 255 On (Internal Microphone)
Time-List for Channel 6 Speed / Strobe 1     |   142 hrs. (5.9days) 🙂
2     |   17.8 hrs.
3     |   5.3 hrs.
10   |   8.55 min.
37   |   10.1 sec.
64   |   2.0 sec.
80   |   1.0 sec.
100 |  0.514 sec.
200 |  0.064 sec.
255 |  0.031 sec.

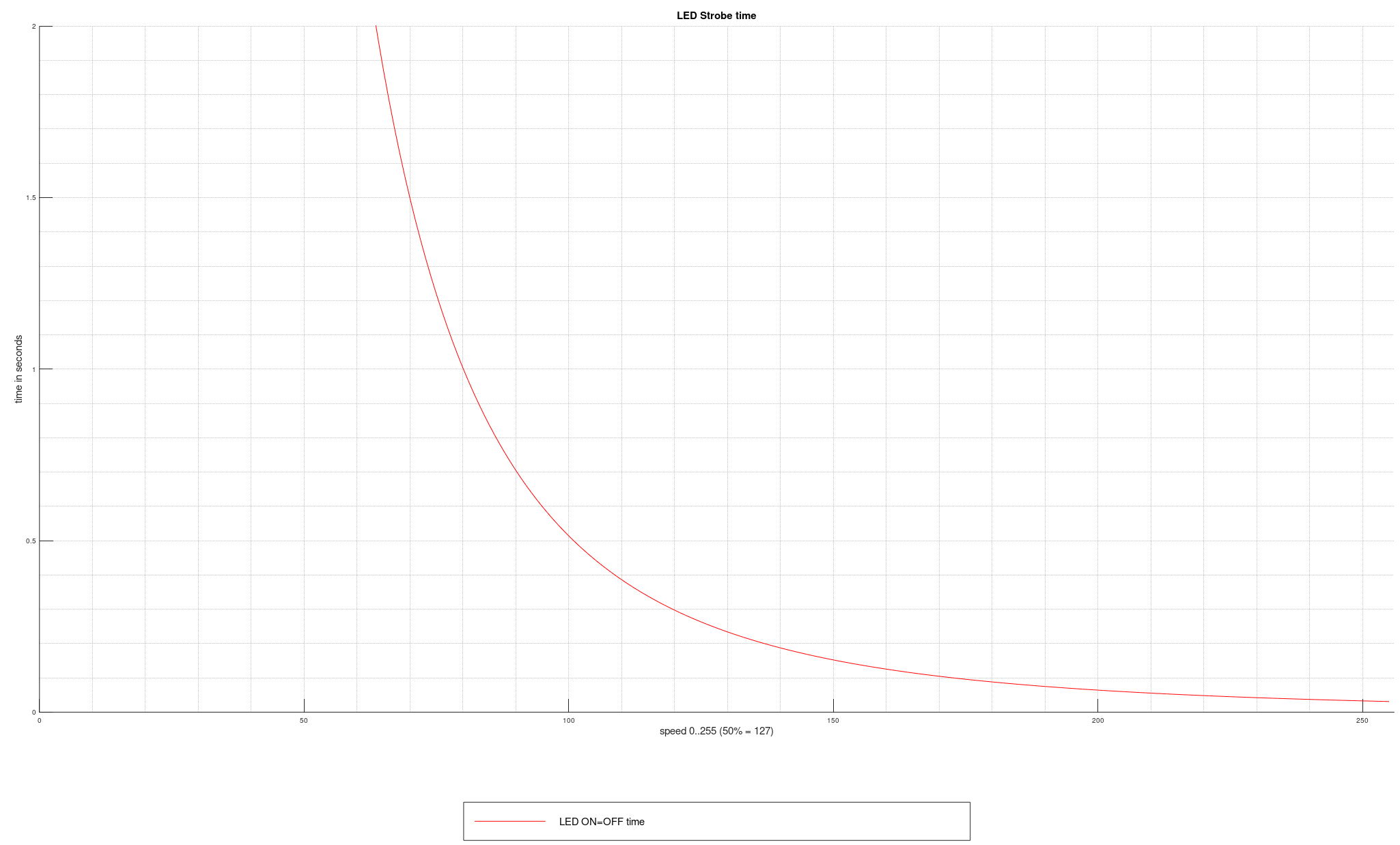

LED Strobe timing

DMX Modes Firmware 5.0 and higher



DMX Mode 4 Channel
Channel Function Value
1 Red 0 – 255
2 Green 0 – 255
3 Blue 0 – 255
4 White 0 – 255

DMX Mode 8 Channel
Channel Function Value
1 Red 0 – 255
2 Red fine 0 – 255
3 Blue 0 – 255
4 Blue fine 0 – 255
5 Green 0 – 255
6 Green fine 0 – 255
7 White 0 – 255
8 White fine 0 – 255

DMX Mode 7 Channel
Channel Function Value
1 Red 0 – 255
2 Green 0 – 255
3 Blue 0 – 255
4 White 0 – 255
5 Dimmer 0 – 255
6 Speed / Strobe 0 = Off   |   1 – 255 Slow to fast (See detailed list below)
7 Musik Mode 0 – 124 Off   |   125 – 255 On (Internal Microphone)
Time-List for Channel 6 Speed / Strobe 1     |   142 hrs. (5.9days) 🙂
2     |   17.8 hrs.
3     |   5.3 hrs.
10   |   8.55 min.
37   |   10.1 sec.
64   |   2.0 sec.
80   |   1.0 sec.
100 |  0.514 sec.
200 |  0.064 sec.
255 |  0.031 sec.

DMX Modes Firmware 4.9 and lower



DMX Mode 4 Channel
Channel Function Value
1 Red 0 – 255
2 Green 0 – 255
3 Blue 0 – 255
4 White 0 – 255

DMX Mode 8 Channel
Channel Function Value
1 Red 0 – 255
2 Red fine 0 – 255
3 Blue 0 – 255
4 Blue fine 0 – 255
5 Green 0 – 255
6 Green fine 0 – 255
7 White 0 – 255
8 White fine 0 – 255

DMX Mode 3 Channel
Channel Function Value
1 Dimmer 0 – 255 (0 – 100%)
2 Program 0 -255 see list below
3 Speed 0 – 255 (0 – 100%)

Values of

channel 2

 Channel 1: Program 1..20 without fade and 1..20 with fade
start at DMX value 0, 6, 12, 18, 24, 30, 36, 42, 48, 54, 60, 66, 72,
78, 84, 90, 96, 102, 108, 114 / 128, 134, 140, 146, 152, 158, 164,
170, 176, 182, 188, 194, 200, 206, 212, 218, 224, 230, 236, 242

Colors and effects

of channel 2

 1 White
2 Red
3 Orange
4 Yellow
5 Lime
6 Green
7 Cyan
8 Cyan-Blue
9 Blue
10 Blue-Magenta
11 Magenta
12 Red Pastel
13 Green Pastel
14 Blue Pastel
15 Blue > Red
16 Magenta > White
17 White > Blue
18 Red Pastel > Green Pastel > Blue Pastel
19 Yellow > Magenta > Blue
20 Rainbow

Enable/Disable via APP (More->Service mode settings), Setting is saved

Disabled: LED PWM Frequency is set to default 500Hz

Enabled: Use higher LED PWM Frequency of 3.9kHz

Pairing between CONNECT and Lamps (also Remote Controls could be paired)

Like pairing between remote control and lamps. Check chapter Pairing in user manual.

  • New Charge LED behavior. LEDs fade between lower and higher brightness.
  • Battery-level indication brightness increased
  • Bugfix self discharging batteries

App Version 2.2.4 (2023-01-01)

CONNECT (WAPP) Firmware 3.2.3

  • ApeDMX: Control other DMX lights with this app along with your ApeDevices
  • New button to copy colors, programs or scenes
  • GridView: Display presets in a grid so more selectable presets fit on your screen
  • Minor fixes and improvements
  • Includes Lights-Firmware 5.2.2 (No Difference to 5.1 – just to fix internal Microcontroller Revision Issues „Rev.A+B“)

Previous Updates 2022

  • Cloud Sync: Save your colors, programs and scenes in the cloud to sync them across all your devices
  • Service mode settings:
    1. Lamp Pairing: Pair your lamps to your CONNECT device so they won’t change colors when there are commands from other CONNECTs or remotes around
    2. Flicker-free mode: Set your lamps to flicker-free mode if you experience flickering when using lights in combination with cameras
    3. Radar: Keep track of your devices while you’re connected to detect if devices were turned off or stolen
    4. Deactivate lamps battery level indicator
    5. Reset lamps settings
  • Edit lamp settings by selecting from device list
  • New 7 channel DMX mode: RGBW, Dimmer, Speed, MusikMode
  • Divide lamps into their assigned groups inside device list
  • Add compatibility with new V2 devices
  • Possibility to disconnect from CONNECT and actively select another device to connect to
  • Live preview for custom colors and programs
  • Just drag and drop your custom presets to sort them the way you want
  • Major UI redesign
  • Connection improvements

Control lights in service mode:

  • Lamp Pairing (Enable/Delete pairing)
  • Set Battery level indicator (On/Off)
  • Flicker Free Mode (On/Off)
  • Reset lamp settings (Reset)
  • Exit Service Mode
